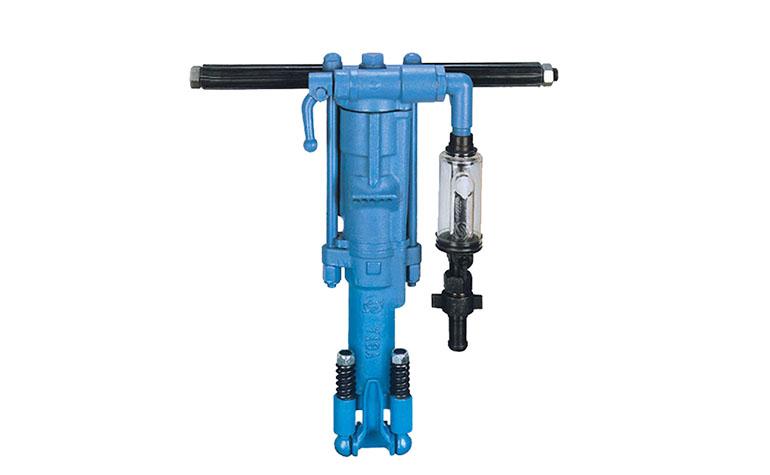

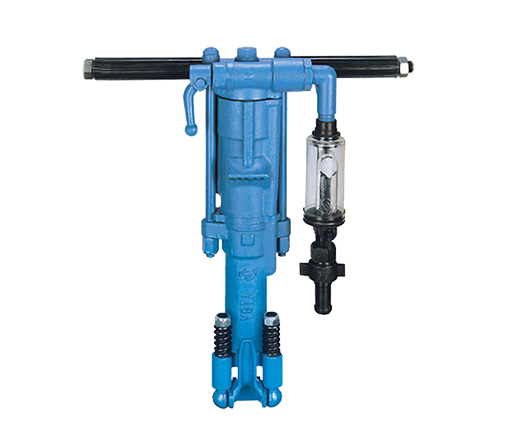

This Series pneumatic rock drill apply in hard rock on the rock drill operation,it has strong adaptability to the working conditions.The product is energy efficiency, Its components has long life and durable.The machine can be generally used with the same type,it can greatly reduce the customer loss for spare part replacement.It is suitable for drilling and blasting under various of rocks at any direction angles.

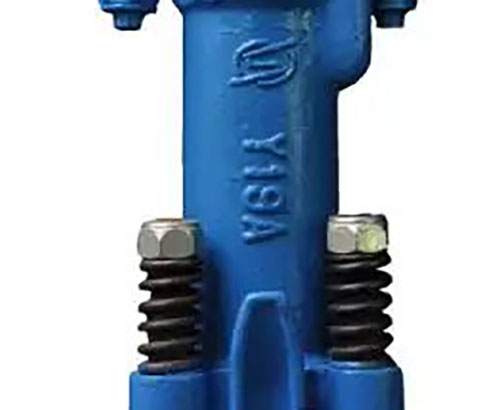

| Item No. | Y19A |
| Air Consumption | 2.2-2.58 m³/min |
| Working Pressure | 4-5 bar |
| Weight | 18KG |
| Cylinder Diameter | 65mm |
| Piston Stroke | 54mm |
| Rock hardness | F=6-20 |
| Drill Depth | 5m |
| Impact consumption | ≥22J |
| Impact frequency | ≥32Hz |
| Air Pipe Size | B22*108mm |
| Package Size | 600*534*106mm |
| Optional of pneumatic air leg rock hammer drill | FT100 |
| Power Type | Pneumatic Type |
| Mobility | Portable |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Application | Mining |
