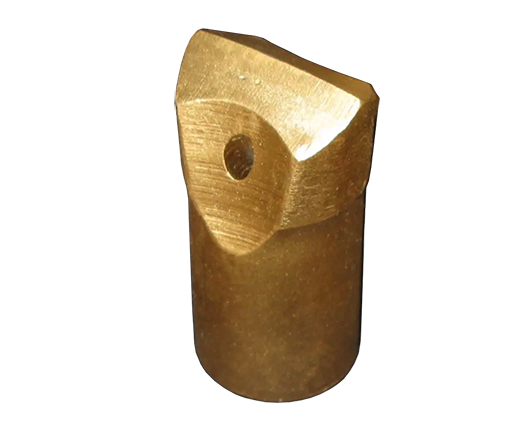

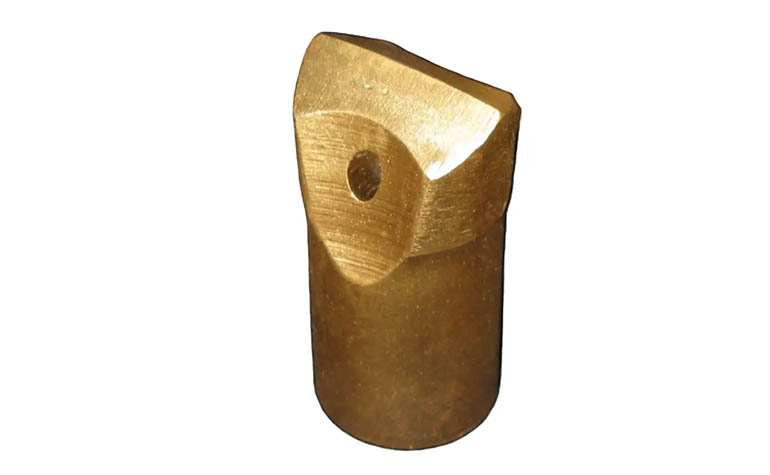

Tapered chisel bits

Chisel Bits are of simple structure for easy use and maintance. It has high rock drilling efficiency andstable property. Chisel drill bit is also known as word drill bits. It's suitable for mining of black metal mines(such as iron mine/ manganese ore), nonferrous metal mine(such as gold/silver/copper ore), marble and granite etc. It is suitable for very hard and abrasive rock formation,medium-hard and homogeneous formation.soft rock and fissured rock formations etc.
Taper angle
4/7/11/12 degree
Diameter
20-44mm
Weight
0.15-0.45 kg
Share
chisel bits
chisel bits
Describe

Premium designs and steel and premium tungsten carbide inserts(cemented carbide bits), Offers industry-leading strength and penetration rates for more productivity,Excellent straightness and hole clean quality, Get max.drilling performance for rock drill with long life to save up fuel cost.
It is widely used in drilling holes with a depth size less than 5 meters and diameter scope in 20-45 mm by light-duty hand hold drills, Like Y6, Y24,YO18,YO20 , YT27,YT28,major use in natural dimensional stone quarry for small hole drilling, block ‘s trimming and 2nd splitting for small blocks. To match Hexagonal 22 mm and Hexagonal 25 mm tapered drill steel with 4 、6、7、11、12 degree , All tapered chisel bit are made with high quality of raw material through special heat treatment, The deliver capacity are very strong and can completely meet customer’s requirements on delivery design.

PRODUCT SPECIFICATIONS
Adhering to the business philosophy of honest operation, win-win cooperation
Product name Tapered chisel bits
Diameter 20-44mm
Taper Angle 4/7/11/12 degree
Weight 0.15-0.45kg
Usage Rock Quarrying
Application Quarry Drilling
Color Yellow
Condition New
Detail display
Adhering to the business philosophy of honest operation, win-win cooperation

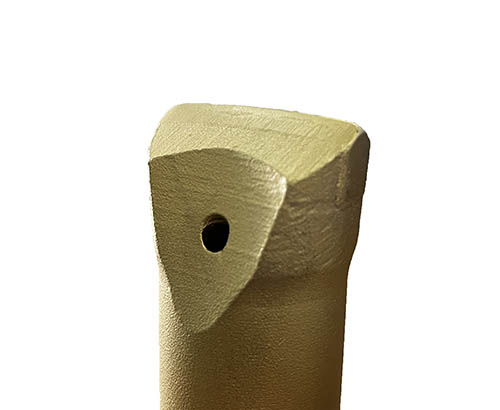

Taper Degree
Taper Degree

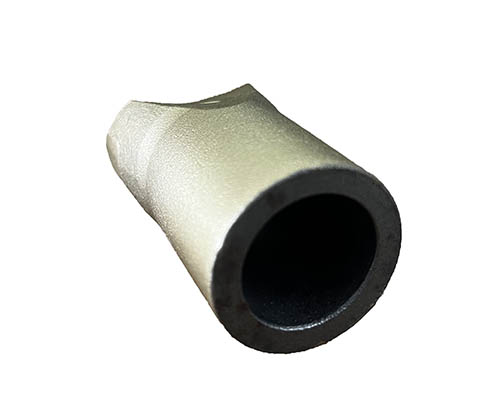

Inner Skirt
Inner Skirt

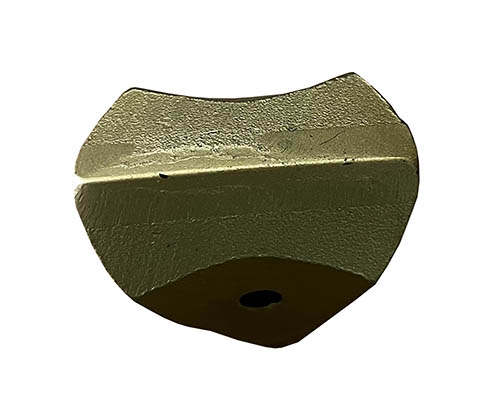

Chisel type
Chisel type
