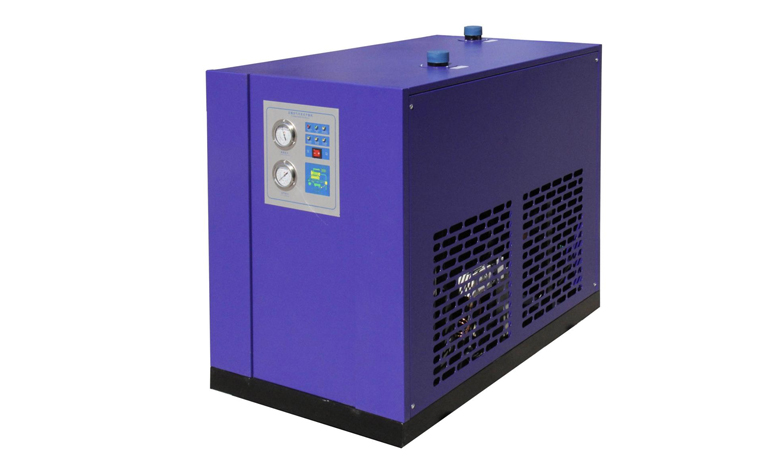

Refrigerated air dryer

Features of Refrigerated Air Dryer
1. Refrigeration compressor adopt High-temperature type enclosed refrigeration compressors,so that have steady running, low noise, reliable performance and energy saving.
2. Heat ex-changer and condenser used high quality and efficient screwed conduit, it has a high heat transfer coefficient that small in size and Compact structure.
3. Refrigeration control elements adopt units of ALCO, which is advanced in the world, with high performance.
4. liquid-vapor separator can make gas-liquid separation effect completely and avoid water the second evaporation , so that confirm the drying effect of the dryer.
5. Reasonable structural design make it easy to maintaining as well as elegant appearance.
6. Without foundation installation, easy to operate.
7. Has a high cost-effective .

Item No. ：

RAD-3SF

Airflow capacity :

3.6m³/min

Voltage Frequency :

220V/50HZ

chat now

send email

describe

Specification

Particulars

application

accessories

Related products

Describe

Air contains contaminants like solid (dust particles), liquid (moisture) and oil which contaminates the compressed air. When this contaminated compressed air is used for various applications, it may cause failures of pneumatic valves, instruments, etc which results in the downtime of whole system.So behind the gas equipment is used to the our refrigerated air dryer.

Product specifications

Adhering to the business philosophy of honest operation, win-win cooperation

Item No.	RAD-3SF
Airflow capacity	3.6m³/min
Voltage Frequency	220V/50HZ
Compressor Power	0.9KW
Fan Motor	90W
Max working speed	2940rpm
Rated working pressure	0.8Mpa
Type of cooling	Air cooling
Dimension	800480840mm
Weight	90KG
