Use of jaw crusher
Crusher is widely used in mining, smelting, construction, road, railway, water conservancy and chemical industry and many other industries, processing large particle size, compressive strength of not more than 300 MB of various ores and rocks coarse or medium crushing operation. PEV series crusher is suitable for rough breaking.

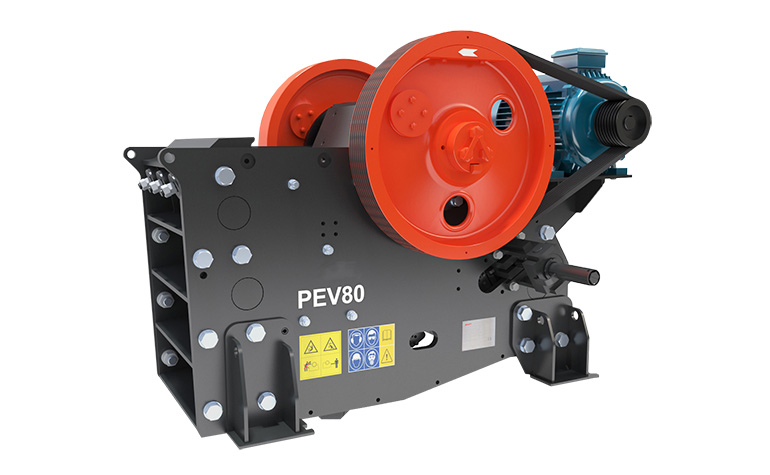

Advantages of PEV series jaw crusher
1.High yield, large crushing ratio, low wear and large feed size
2.The V-type deep chamber design maximizes feed size, yield and crushing ratio with low wear
3.A reliable, heavy-duty motion frequency assembly made of high-quality cast steel and driven by a large cast steel or cast iron pulley and flywheel
4.Modular, solderless frame structure and integrated motor installation are adopted to avoid stress concentration and reduce installation space
5.Wedge vent adjustment system is simpler and safer than gasket adjustment
| Item No. | PEV80 |
| Feed port size (mm) | 800*510 |
| Feed size (mm) | < 410 |
| Discharge port size (mm) | 40-175 |
| Speed (RPM) | 350 |
| Power (KW) | 75 |
| Processing Capacity (tph) | 65-380 |
| Weight (KG) | 9520 |
| Dimensions: Length * Width * height | 2577*1526*1750 |
