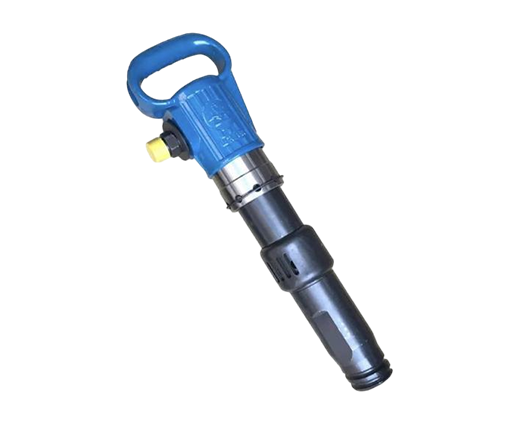

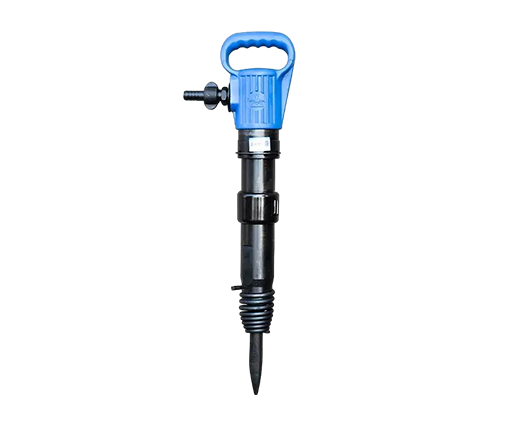

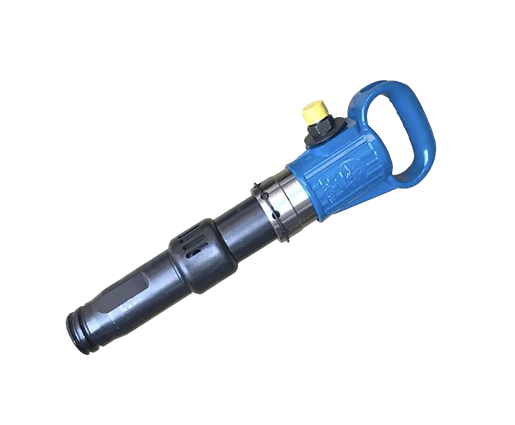

G11 Pneumatic Pick

The pneumatic pick, also known as a paving breaker, is a valuable tool extensively used in construction and demolition projects. This powerful handheld device operates on compressed air and delivers high-impact blows to effectively break up concrete, asphalt, and other stubborn materials. The pneumatic pick is constructed with a sturdy steel body and a percussion mechanism that efficiently transfers energy to the tip, maximizing its effectiveness. With an ergonomic handle that minimizes operator fatigue, this tool ensures enhanced productivity. Its versatility and durability make the pneumatic pick an indispensable tool for professionals in the construction industry, enabling efficient and precise demolition and construction activities. Whether it's breaking through solid layers of concrete or removing old pavement, the pneumatic pick proves to be an essential asset for completing tough jobs with ease.
Item No. :
G11
Working Pressure :
0.4-1.63Mpa
Weight:
10.4kg
Share
Jack hammer
Jack hammer
Jack hammer
Jack hammer
Jack hammer
Jack hammer

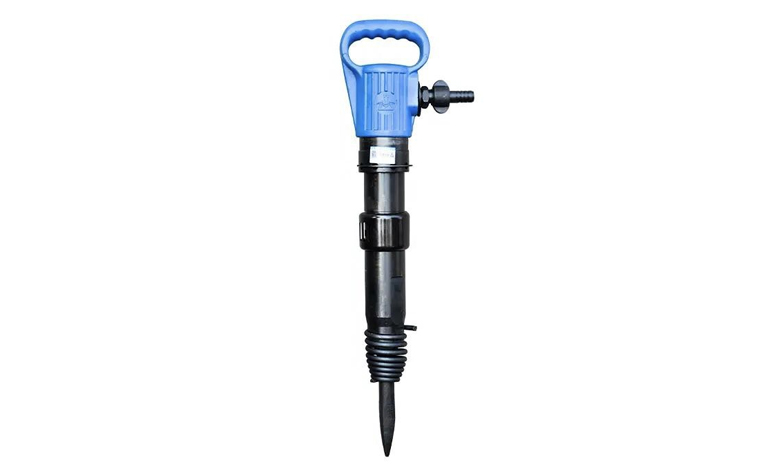

Describe

The pneumatic pick hammer is used for rock drilling, blasting holes and other drilling works in the quarries, small coal mines and other constructions.
Advantages of Pneumatic pick hammer:
1.Energy-saving and efficient.
2.Fit for wet drilling in medium-hard or hard rock.
3.High performance and long service life

Product specifications
Adhering to the business philosophy of honest operation, win-win cooperation
Item No. G11
Working Pressure 0.4-0.63Mpa
Length 570MM
Weight 10.4KG
Cylinder Diameter 80mm
Piston Stroke 155mm
Impact Frequency ≥16.5HZ
SCFM ≤ 26
Inner diameter of air pipe 16mm
Bit Shank Size Φ24*70mm
Drill Depth 5m



Detail display
Adhering to the business philosophy of honest operation, win-win cooperation
Handheld
Handheld
Connect
Connect
Spring ring
Spring ring
Pick-rods for pneumatic picks
Pick-rods for pneumatic picks
Product Accessories
