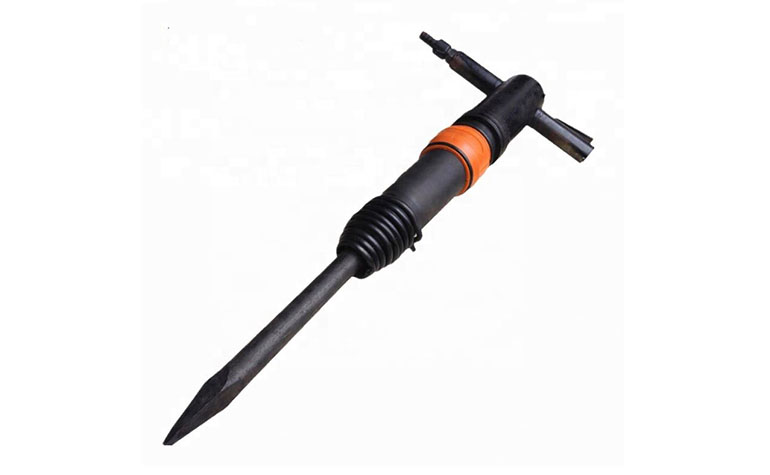

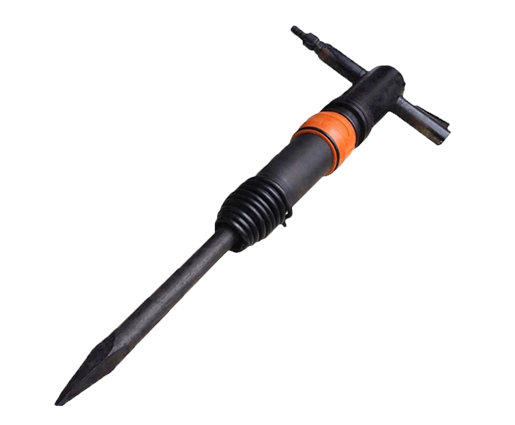

G20 Pneumatic Pick

The pneumatic pick, also known as a paving breaker, is a valuable tool extensively used in construction and demolition projects. This powerful handheld device operates on compressed air and delivers high-impact blows to effectively break up concrete, asphalt, and other stubborn materials. The pneumatic pick is constructed with a sturdy steel body and a percussion mechanism that efficiently transfers energy to the tip, maximizing its effectiveness. With an ergonomic handle that minimizes operator fatigue, this tool ensures enhanced productivity. Its versatility and durability make the pneumatic pick an indispensable tool for professionals in the construction industry, enabling efficient and precise demolition and construction activities. Whether it's breaking through solid layers of concrete or removing old pavement, the pneumatic pick proves to be an essential asset for completing tough jobs with ease.
Item No. :
G20
Working Pressure :
0.4-1.63Mpa
Weight:
20kg
Share
Pneumatic pick
Pneumatic pick
Describe

The pneumatic pick hammer is used for rock drilling, blasting holes and other drilling works in the quarries, small coal mines and other constructions.
Advantages of Pneumatic pick hammer:
1.Energy-saving and high efficiency.
2.Fit for wet drilling in medium-hard or hard rock.
3.High performance and long service life
4.Easy to operate and control

Product specifications
Adhering to the business philosophy of honest operation, win-win cooperation
Item No. G20
Working Pressure 0.5-0.63Mpa
Length 575MM
Weight 20KG
Cylinder Diameter 80mm
Piston Stroke 200mm
Impact Frequency ≥16.5HZ
SCFM ≤ 26
Inner diameter of air pipe 16mm
Bit Shank Size Φ24*70mm



Air consumption ≤28 L/s
Dimension(L*W*H) 668X248X202mm
Single package size 670X300X300mm
Power Type Pneumatic Type
Mobility Portable
Machinery Test Report Provided
Video outgoing-inspection Provided
Application Mining
Feature High Drilling Efficiency
Detail display
Adhering to the business philosophy of honest operation, win-win cooperation
Handheld
Handheld
Connect
Connect
Spring ring
Spring ring
Pick-rods for pneumatic picks
Pick-rods for pneumatic picks
Product Accessories
Adhering to the business philosophy of honest operation, win-win cooperation
