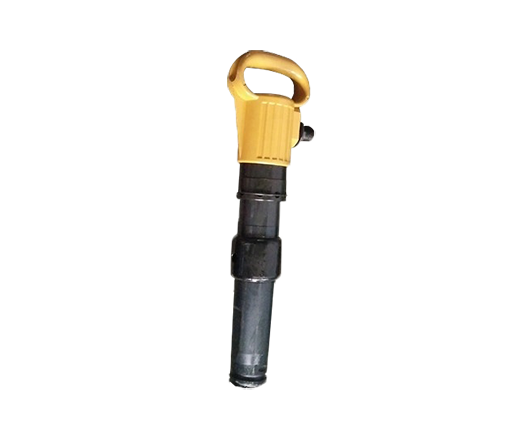

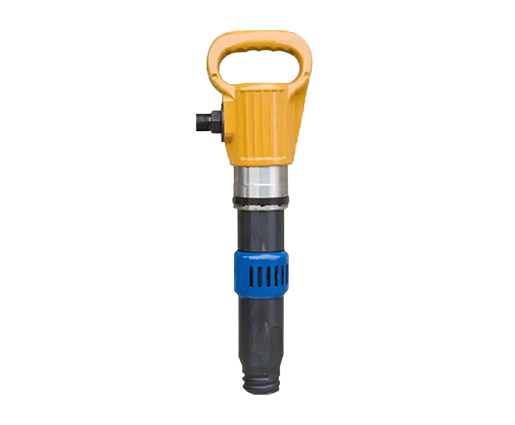

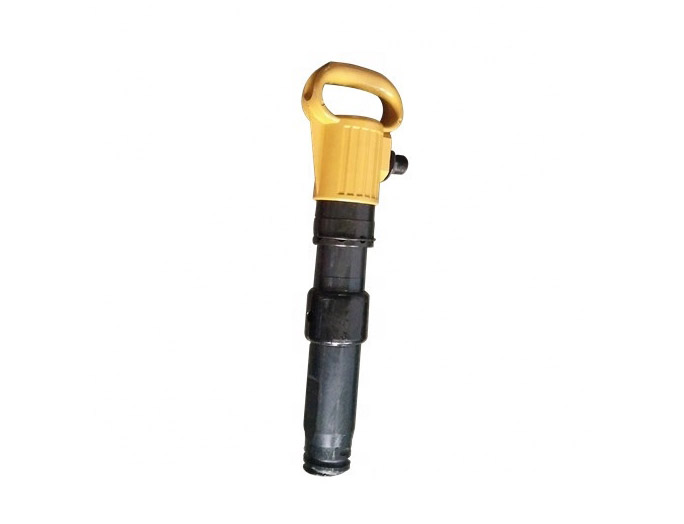

The pneumatic pick hammer is used for rock drilling, blasting holes and other drilling works in the quarries, small coal mines and other constructions. It operates on compressed air, delivering high-impact blows efficiently. With its durability and versatility, the pneumatic pick is essential for professionals in the industry, ensuring efficient and precise work.
Advantages of Pneumatic pick hammer:
1.Energy-saving and high efficiency.
2.Fit for wet drilling in medium-hard or hard rock.
3.High performance and long service life
4.Easy to operate and control
| Item No. | G15 |
| Working Pressure | 0.4-0.63Mpa |
| Length | 575MM |
| Weight | 12KG |
| Cylinder Diameter | 80mm |
| Piston Stroke | 200mm |
| Impact energy | ≥43J |
| Impact Frequency | 16HZ |
| Inner diameter of air pipe | 16mm |
| Bore diameter | 42mm |
| Air consumption | ≤27 L/s |
| Dimension(L*W*H) | 668X248X202mm |
| Single package size | 670X300X300mm |
| Power Type | Pneumatic Type |
| Mobility | Portable |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Application | Mining |
| Feature | High Drilling Efficiency |
