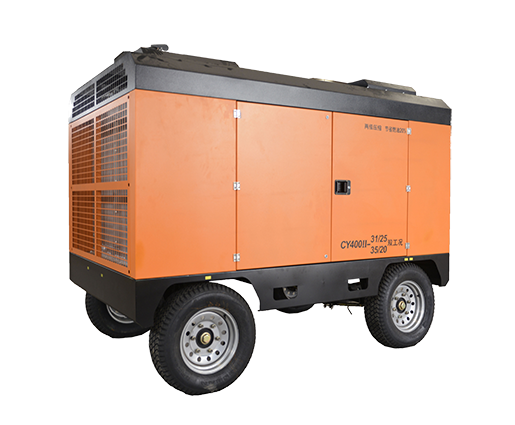

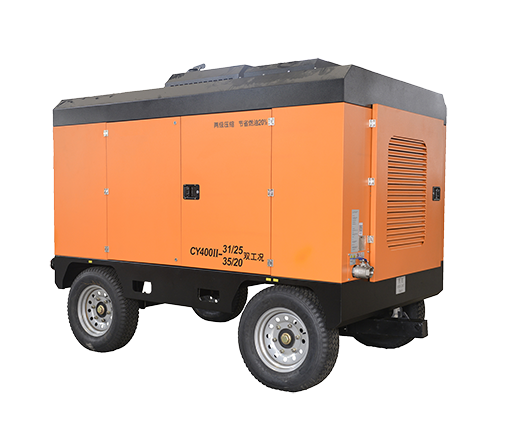

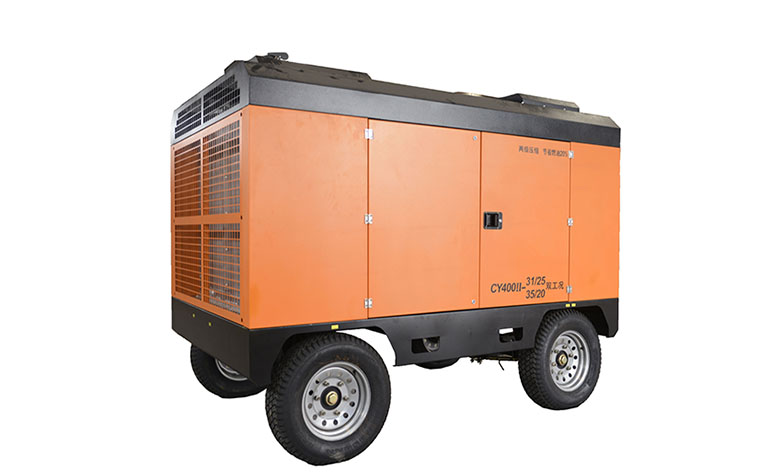

The diesel mobile screw air compressor is a reliable and versatile piece of equipment designed to meet the portable compressed air needs of various industries. Its compact size and mobility enable easy transportation to remote sites. Powered by a diesel engine, it ensures uninterrupted performance where electricity may not be readily available. This compressor offers adjustable pressure settings, providing flexibility for different applications. Whether it’s construction, drilling, or road maintenance, the diesel mobile screw air compressor delivers a continuous and high-pressure air supply to power pneumatic tools and equipment.
| Model | CY400II-31/25(35/20) |
| Exhaust volume (m³/min) | 31 |
| Exhaust pressure (bar) | 25 |
| Compression grade | Two stage |
| Reservoir volume (L) | 160 |
| Oil content of screw machine (L) | 100 |
| Engine manufacturer | Xichai |
| Number of cylinders | 6 cylinders |
| Emission standard | Country III |
| Rated power (Kw) | 309KW |
| Rated speed (rpm) | 1900 |
| Idling speed (rpm) | 1450 |
| Diesel engine oil (L) | 32 |
| Coolant quantity (L) | 70 |
| Fuel tank volume (L) | 420 |
| Average fuel consumption | 55L-60L |
| Exhaust port Port Size | 1-G2 “1-G1” |
| Dimensions(mm) | 2800*2000*2000mm |
| Machine weight (KG) | 4600 |
